Product type: Flex Series
Pixel pitch: Indoor P1.875/ P2/ P2.5/ P3/ P4
Maintenance type: Front access
|

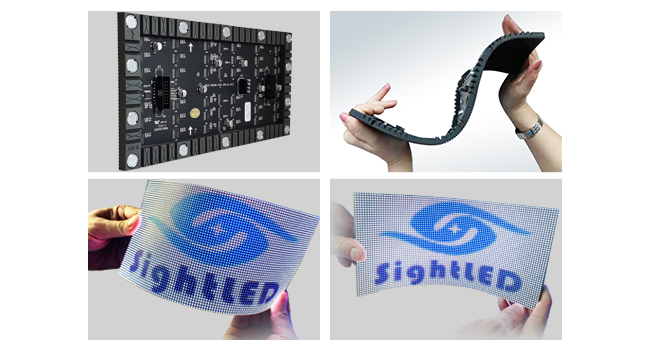

High Flexibility
Flexible LED wall is made of soft PCB and rubber material. It is extremely soft, can be made in any sizes and shapes for creative installations.
Optimal bending angles >135 degree. Special soft and stable circuit layout PCB design. Strong and big magnetic force. No warping and no degumming on corners. Different module size for options - 240*120mm, 320*160mm.
|
 |
 |

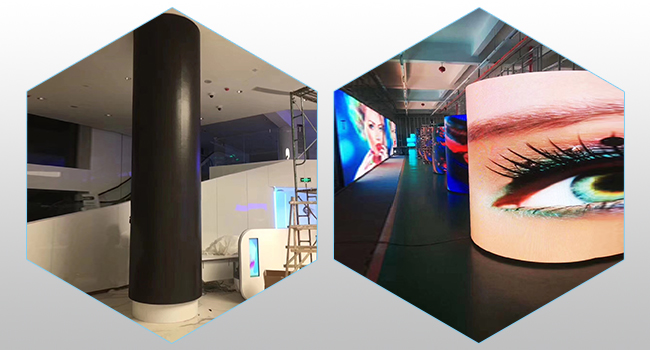

Easy to Install and Maintain
The flexible led billboard is with seamless splicing between the flexible led screen wall within ±0.1mm. The soft LEDed panel saves 83% shipping and installation cost. It is very easy to maintain and replace most of the users. |
|

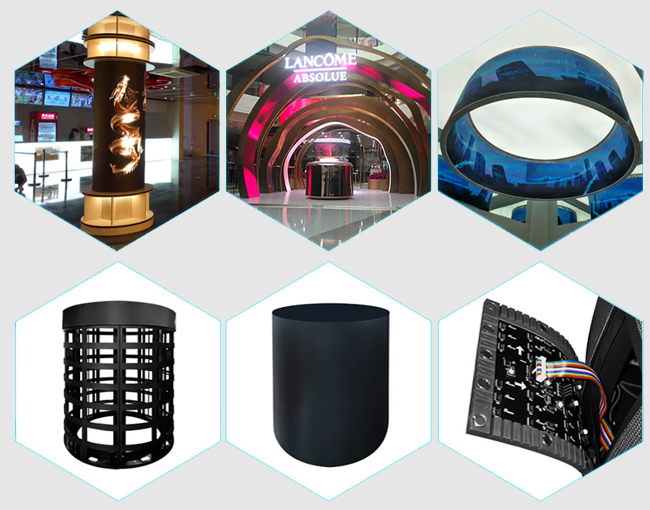

Multiple Styles

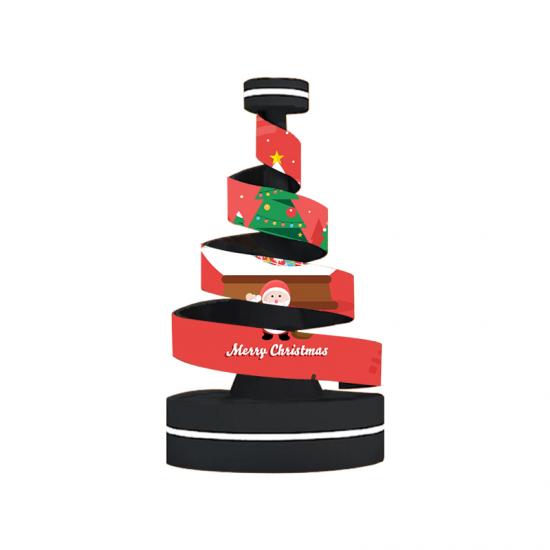

Flexible application for various design in shapes like LED cylinder, LED Balls, LED Ribbon, LED Tree, LED Wave, LED Bowl, LED Gate. |
 |

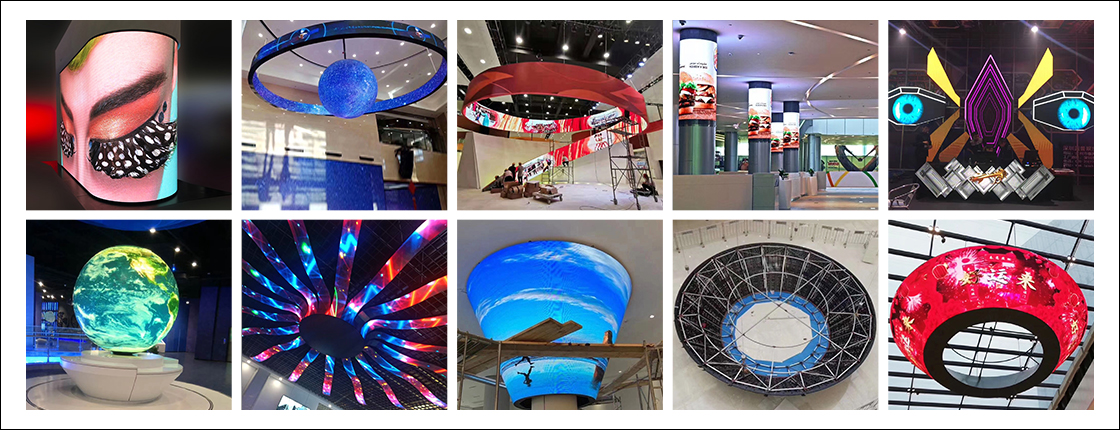

Projects
Parameters
Model
Flex1.8
Flex2.0
Flex2.5
Flex3.0
Flex4.0
Pixel pitch
P1.875mm
P2mm
P2.5mm
P3mm
P4mm
LED types
Indoor SMD1515
Indoor SMD1515
Indoor SMD1515
Indoor SMD2121
Indoor SMD2121
Pixel density
284444/m2
250000/m2
160000/m2
111111/m2
62500/m2
Module size
240*120mm(W*H)
240*120mm(W*H)
240*120mm(W*H)
240*120mm(W*H)
240*120mm(W*H)
Module resolution
128*64 pixels
120*60 pixels
96*48 pixels
80*40 pixels
60*30 pixels
Sanning mode
1/32
1/30
1/24
1/20
1/15
Input power
4.2V-5V
4.2V-5V
4.2V-5V
4.2V-5V
4.2V-5V
Module weight
0.2KG
0.2KG
0.18KG
0.17KG
0.16KG
Module thinness
8.6mm
8.6mm
8.6mm
8.6mm
8.6mm
Maintenance way
Magnetic front service
Magnetic front service
Magnetic front service
Magnetic front service
Magnetic front service
Brightness
650-900cd
650-900cd
650-900cd
650-900cd
650-900cd
Average power consumption
150W/m2
150W/m2
150W/m2
150W/m2
150W/m2
Maximum power consumption
500W/m2
500W/m2
500W/m2
500W/m2
500W/m2
Cabinet shape
Customized shapes, LED cylinder, LED balls, LED ribbion, LED tree, LED wave etc.
Viewing angle
H140/V140
Refresh rate
3840hz
