Sight LED Indoor Rental LED Video Wall, Front & Rear Maintenance, remove the modules without any tools and maintain the screen in front side as well as rear side easily. No tools are required for installation of screen.

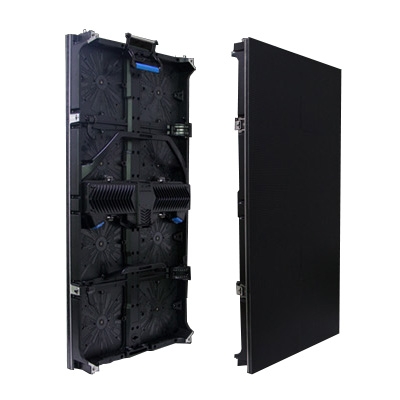

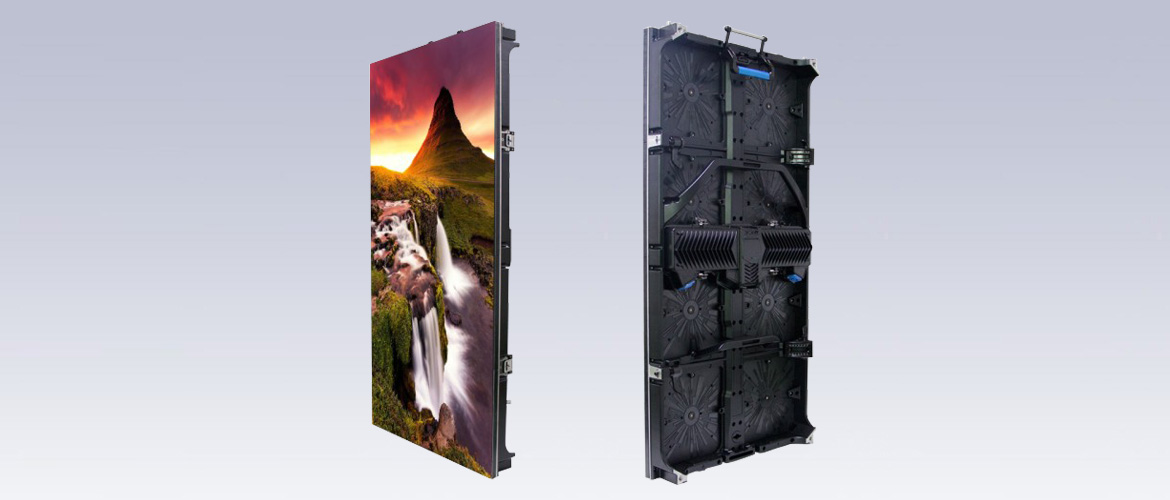

Light Weight Rental LED Screen SR Series 500*1000mm
Panel weight only 12kg, more than 20% lighter than regular products.

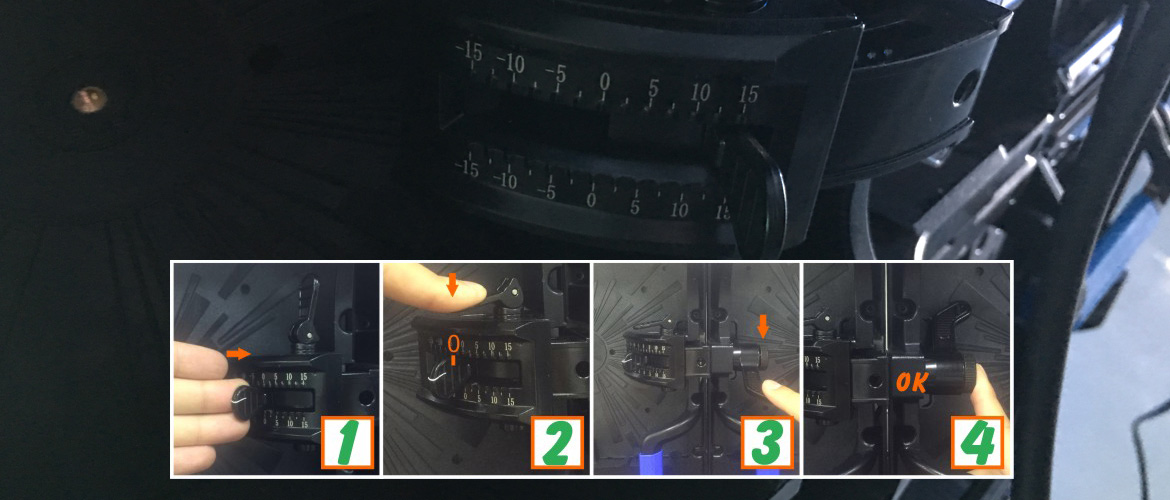

ARC-Shape Support Creative Way of Installation
High precision curving blocks support customized
Enable -15° ~ +15° at every 5° step, support ±15°, ±10°, ±5° ,0°

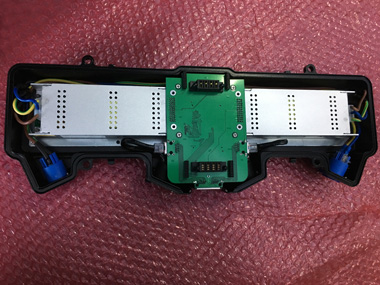

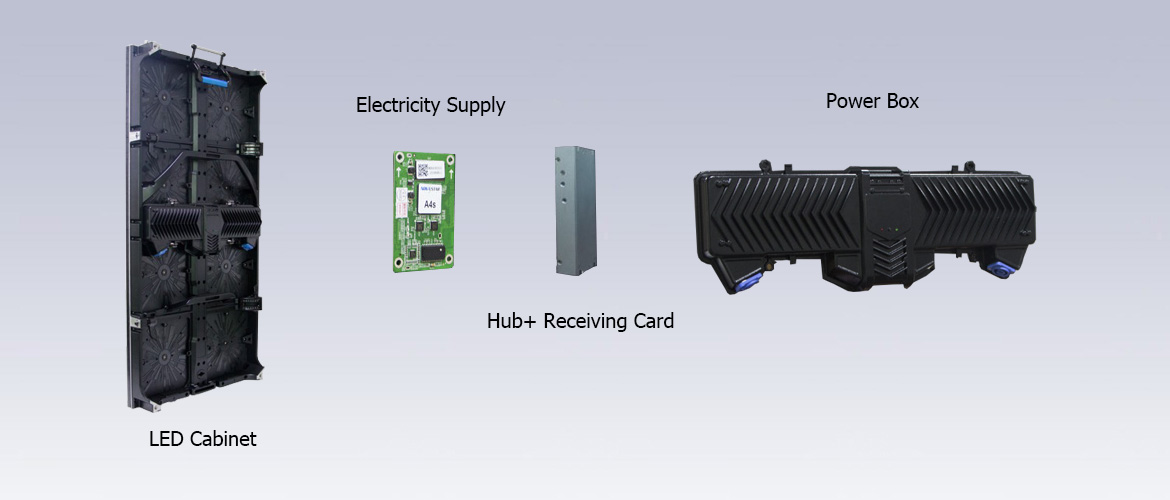

Quick Swappable Power Box Design

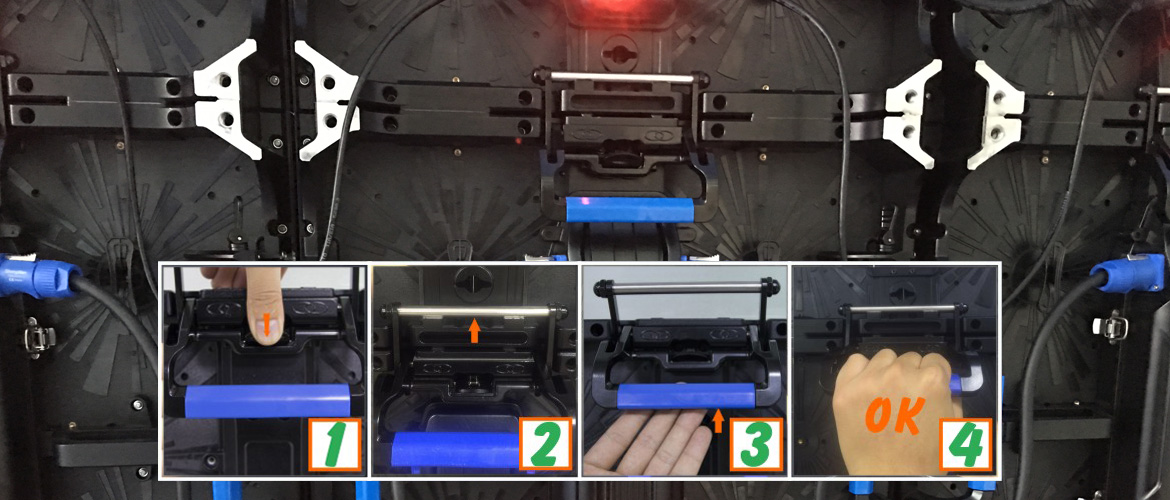

Fast Maintenance

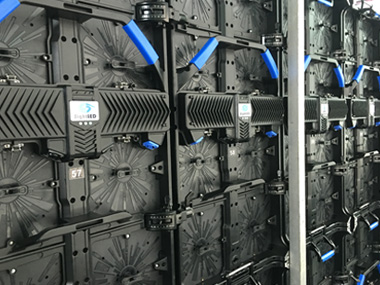

Rear maintenance for module & whole cabinet
Replace the cabinet within 20s
More Details

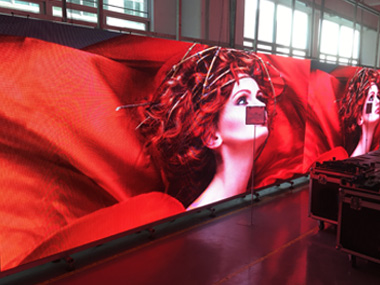

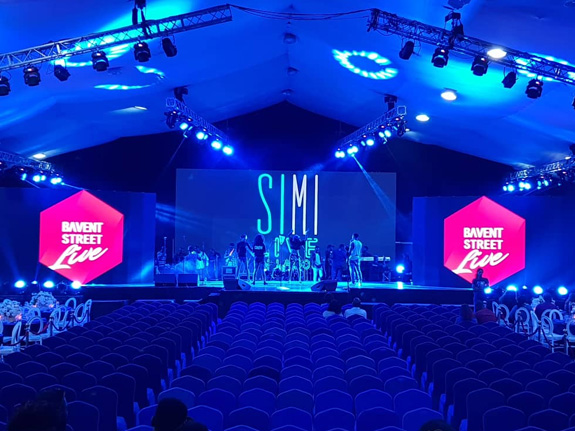

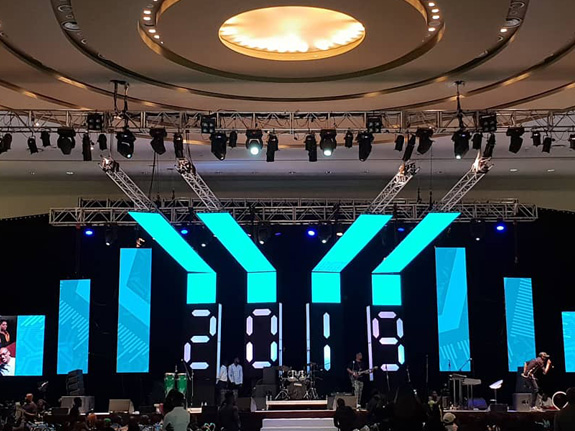

Show Cases
Parameters
Type
P2.97 Indoor
P3.91 Indoor
P3.91 Outdoor
P4.8 Indoor
P4.8 Outdoor
Pixel Pitch
2.97mm
3.91mm
3.91mm
4.8mm
4.8mm
Pixel Density
112896 dots/m²
65536 dots/m²
65536 dots/m²
43264 dots/m²
43264 dots/m²
Brightness
1000nits
1000nits
≧4500nits
1000nits
≧4500nits
Cabinet Size
500*1000*85mm
500*1000*85mm
500*1000*85mm
500*1000*85mm
500*1000*85mm
Cabinet Resolution
168X168 dots
128X128 dots
128X128 dots
102X102 dots
102X102 dots
Material
Die-casting aluminum
Die-casting aluminum
Die-casting aluminum
Die-casting aluminum
Die-casting aluminum
Scanning Mode
1/28
1/16
1/16
1/13
1/13
Cabinet Weight
12kg
12kg
13kg
13kg
13kg
Refresh rate
1920Hz
1920Hz
1920Hz
1920Hz
1920Hz
Max. Power Consumption
450W/㎡
400W/㎡
650W/㎡
380W/㎡
500W/㎡
Avg. Power Consumption
140W/㎡
130W/㎡
200W/㎡
120W/㎡
160W/㎡
Grey scale
16 bit
16 bit
16 bit
16 bit
16 bit
