Products
Home Fixed Installation LED Display

Indoor LED Display

Indoor Fixed SMD P5 Large LED Video Display

Indoor Fixed SMD P5 Large LED Video Display

LED Cabinet thickness only 80mm, panel weight 12.7KG, super light and slim, good for installation and transportation. Can be installed on the wall, saving space, easy maintenance.

Product Details

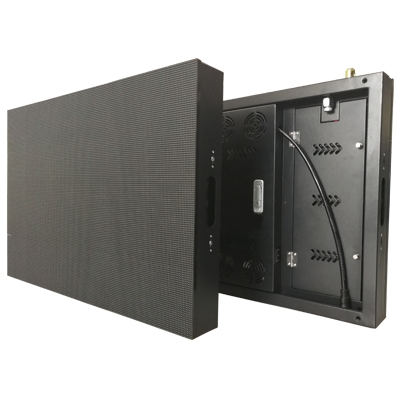

Indoor Fixed SMD P5 Large LED Video Display


Indoor Fixed SMD P5 Large LED Video Dsiplay





Indoor Fixed SMD P5 Large LED Video Dsiplay

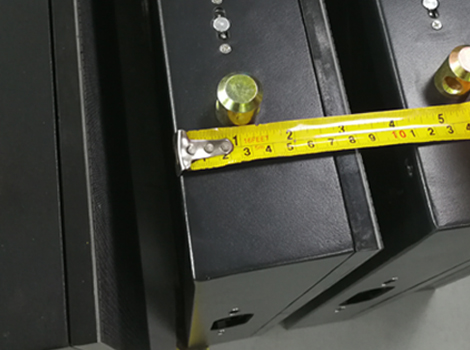

Light and Slim


LED Cabinet thickness only 80mm,

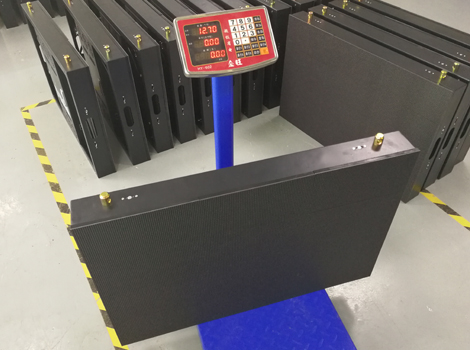

panel weight about 12.7KG base on 640*640mm cabinet size,

super light and slim, good for installation and transportation.











Leddisplayllc Indoor Fixed SMD P5 Large LED Video Dsiplay





Wide Viewing Angle

Can Be Used for More Indoor Applications


Both vertical and horizontal viewing angles can be reached 140 degrees,

making it the best solution for long-distance and long-time displaying applications.










Leddisplayllc Indoor Fixed SMD P5 Large LED Video Dsiplay






Can be installed on the wall, saving space.


Fast and easy to operate Hanging installation, stacking installation,

front installation and other installations are available.








Leddisplayllc Indoor Fixed SMD P5 Large LED Video Dsiplay

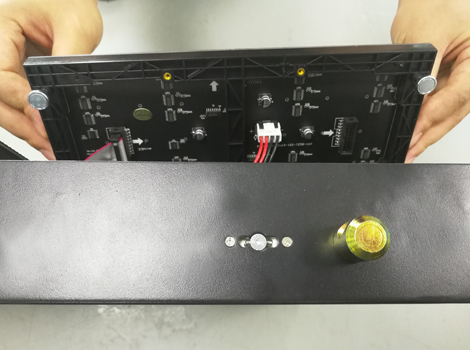

Easy Maintenance

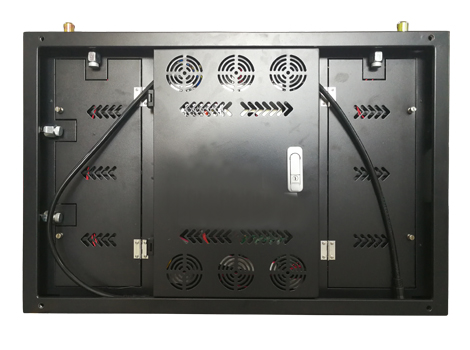

Total front service Modules, power supplies, and receiving cards

can be maintained from the front and also from the back

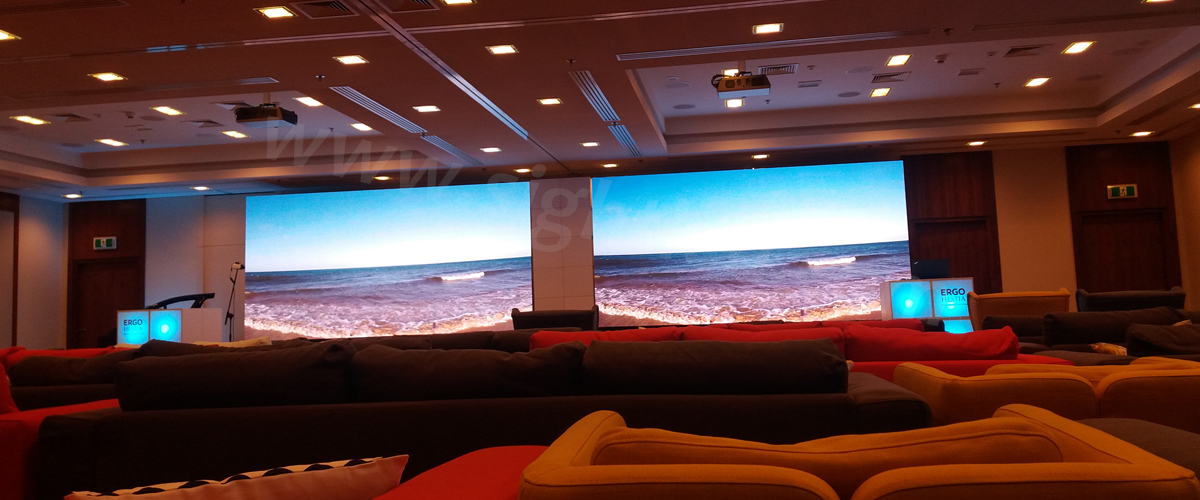

Application of Leddisplayllc Indoor Fixed SMD P5 Large LED Video Dsiplay




Model
P5
Pixel Pitch
5 mm
LED Type
SMD3528
Configuration
1R1G1B
Module Size
320*160mm Pixel Density
40000 pixel/㎡
Refresh Rate
≥ 1920Hz
Gray Scale
16 Bit
Brightness
≥ 1200 cd/㎡
Scan Way
1/16
Frame Rate
50HZ~60HZ
Viewing Angle
H:140°, V:140°
Cabinet Resolution
128*128 Dots
Material
Aluminum (Iron is Optional)
Cabinet Size
640*640mm Cabinet Weight
12.7kg
IP Rating
IP31
Max.Power Consumption
290W/Panel
Avg.Power Consumption
95W/Panel
Working-Temperature
-20℃~60℃
Working Humidity
10%~90% RH
Blind spot rate
≤0.01%
MTBF
35000 Hour
Lifespan
100000 Hour
