Pixel Pitch：P1.25/P1.53/1.66/1.86/2/2.5mm
-Strong stability:Use high-quality components and sophisticated processing technology to ensure high quality.
-High gray:Perfect gray scale performance when brightness down to 20%.
-High contrast:high-quality black LEDs make the image clear and sharp.
-Super wide viewing anglewith exquisite image:: the view angle is up to160 °/160 °
-High refresh rate:No stripes for HD camera shooting
Leddisplayllc HD Indoor LED display application

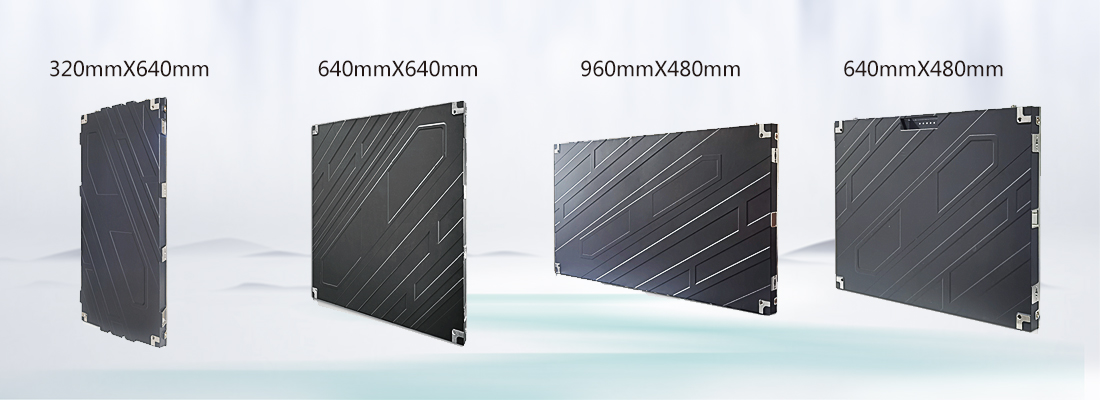

Different sizes of cabinets
320mmX640mm, 640mmX640mm, 960mmX480mm, 640X480mm
Meet different projects requirements, different sizes of cabinets can work together

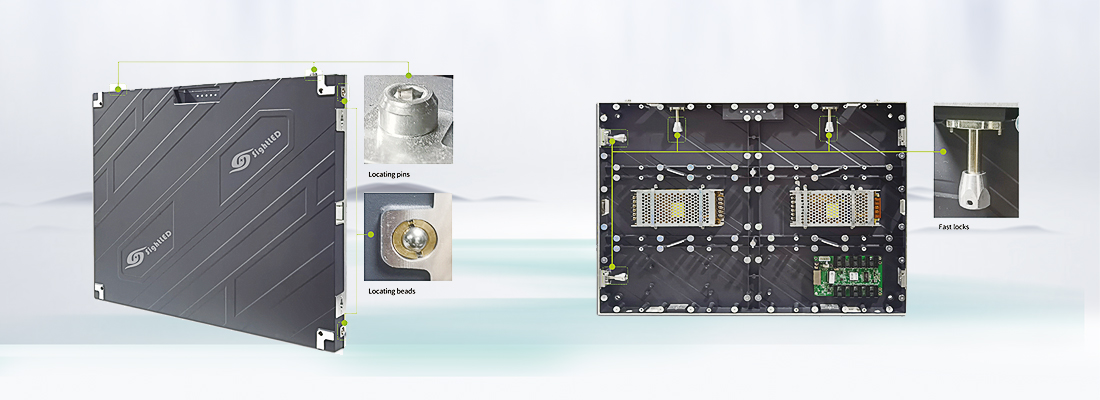

Good Heat Dissipation, Easy Installation
Inner fixed reinforcement plate, and shockproof, auto heat dissipation, make the life span last over 10 years
Accurate, fast, easy, light weight, flexible positioning installation, it can effectively deal with different installation applications.

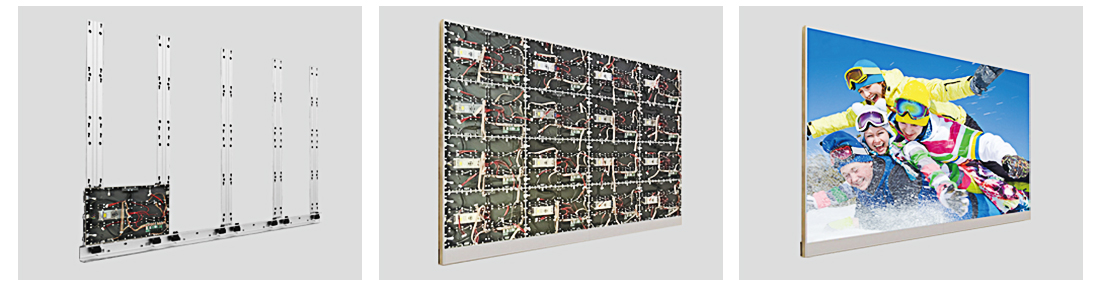

Easy and fast installation
Using standard brackets which is light weight but durable structure for installation
It's much more convenience for installation and transportation.
Our HD LED screens have great performance and adapt to a variety of installation environments.

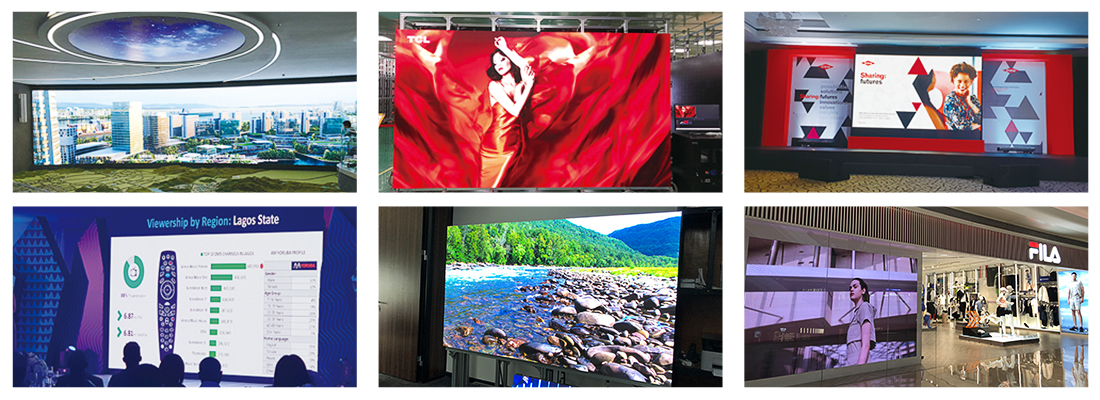

Our projects reference
| HD indoor LED Display Specification | ||||||
| Model | HD1.25 | HD1.53 | HD1.66 | HD1.86 | HD2 | HD2.5 |
| Pixel Pitch | P1.25mm | P1.53mm | P1.66mm | P1.86mm | P2mm | P2.5mm |
| LED Types | Indoor SMD1010 | Indoor SMD1212 | Indoor SMD1212 | Indoor SMD1515 | Indoor SMD1515 | Indoor SMD2121 without mask, SMD1515 with mask |
| Pixel Density: | 640000/㎡ | 422500/㎡ | 360000/㎡ | 288888/㎡ | 250000/㎡ | 160000/㎡ |
| Module Size : (Wx H) | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Module Resolution: (pixels) | 256*128 | 209*104 | 192*96 | 172*86 | 160*80 | 128*64 |
| Input power | 4.2V-5V | 4.2V-5V | 4.2V-5V | 4.2V-5V | 4.2V-5V | 4.2V-5V |
| Module Scanning method : | 1/64 | 1/52 | 1/48 | 1/43 | 1/40 | 1/32 |
| Cabinet size & weight | 320mm*640mm*62mm (5KG)，640mm*480mm*62mm(7.1KG)， 640mm*640mm*62mm(9.6KG)，960mm*480mm*62mm(10.8KG) | |||||
| Cabinet materials | Die-cast aluminum | |||||
| Maintenance Way | Magnetically Front service without screws | |||||
| Brightness: | 600-900CD//㎡ (ajustable) | |||||
| Average Power Consumption: | 150w/㎡ | |||||
| Maximum Power Consumption: | <600w/㎡ | |||||
| Viewing Angle: | H140°/V140° | |||||
| Refresh Rate: | Hight refresh rate >3840hz | |||||
| Grey Scale: | 14-16bit | |||||
| Input power | 100-120V /200-240V | |||||
| Operating Environment Temperature: | -20~50 ℃ | |||||
