Professional LED cabinet design, IP67 in front & back, strong water-proof feature. 5 seconds for installation & uninstallation of front & back accesses.

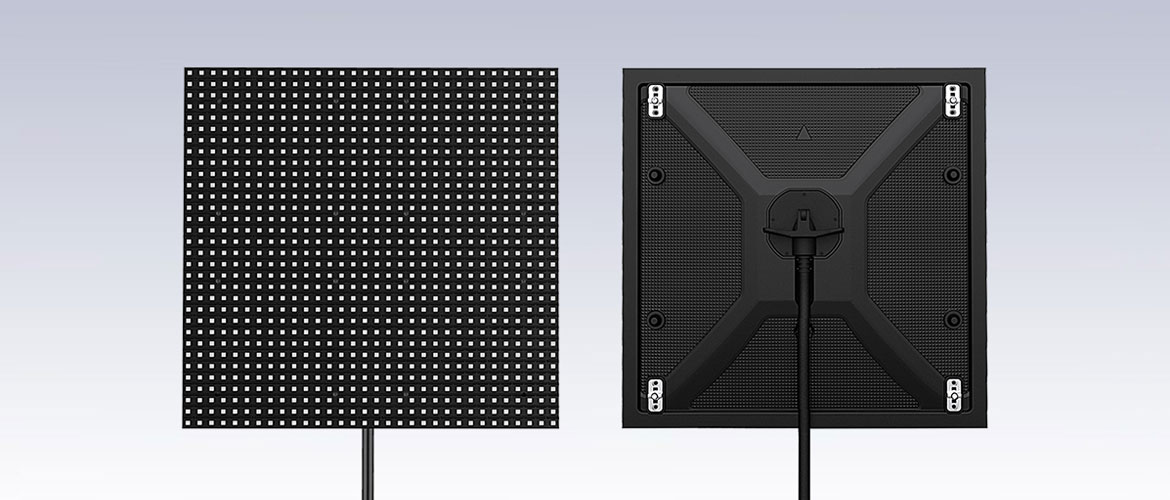

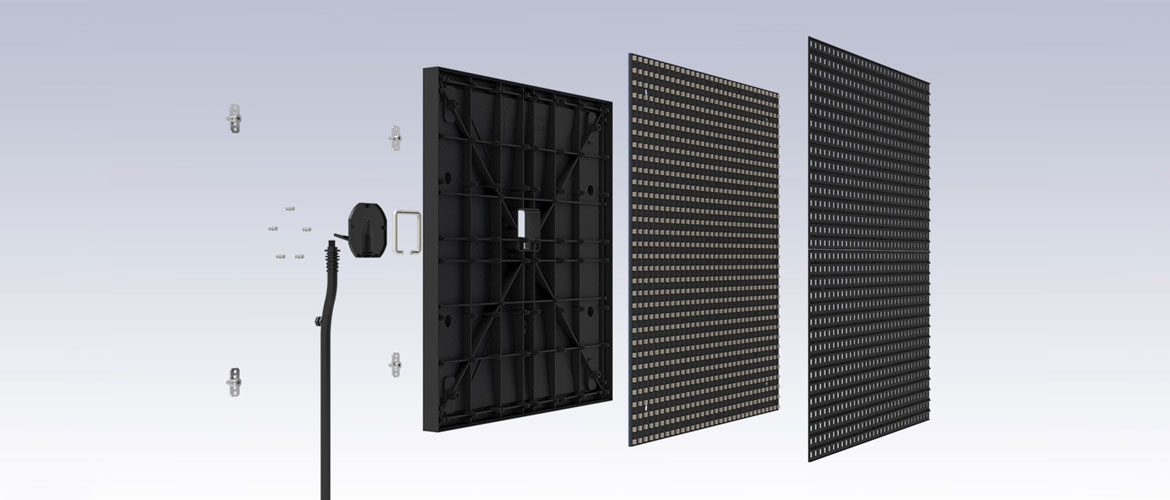

IP67 Waterproof and Dust-proof LED Module
Front & back high protection grade sealed led module, module size 320*320mm.
IP67 waterproof and IP67 dustproof.

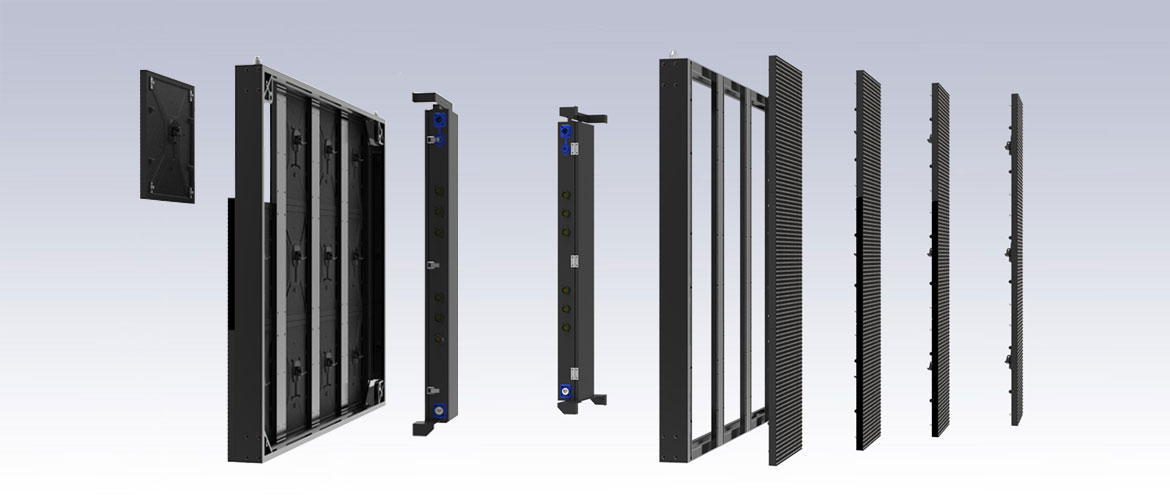

Professional Independent LED Module Design
Independent led module design, 5 seconds for installation & uninstallation of front & back accesses.
Withstand Adverse Weather Conditions
Leddisplayllc provides a truly breathtaking outdoor LED display you can depend on.
This led display is still in good working status between +60 degree and -20 degree.
Product Series
P5
P6.4
P8
P10
Pixel Pitch
5mm
6.4mm
8mm
10mm
Module Size
320X320mm
320X320mm
320X320mm
320X320mm
Module Resolution
64X64 dots
50X50 dots
40X40 dots
32X32 dots
LED Type
SMD3535
SMD3535
SMD3535
SMD3535
Cabinet Size
1280X960mm
1280X960mm
1280X960mm
1280X960mm
Cabinet Resolution
256X192
200X150
160X120
128X96
Material
Aluminum
Aluminum
Aluminum
Aluminum
Cabinet Weight
30kg
30kg
30kg
30kg
Pixel Density
40000 dots/㎡
24414 dots/㎡
15625 dots/㎡
10000 dots/㎡
Brightness
≧5500 cd/㎡
≧6000 cd/㎡
≧6000 cd/㎡
≧6000 cd/㎡
Refresh Rate
1920-3840Hz
1920-3840Hz
1920-3840Hz
1920-3840Hz
Gray Level
16bit
16bit
16bit
16bit
Avg. Power Consumption
180W/㎡
180W/㎡
180W/㎡
180W/㎡
Max. Power Consumption
600W/㎡
600W/㎡
600W/㎡
600W/㎡
Viewing Angle
H:140° V:140°
H:140° V:140°
H:140° V:140°
H:140° V:140°
IP Grade
Front: IP67 Back: IP64
Front: IP67 Back: IP64
Front: IP67 Back: IP64
Front: IP67 Back: IP64
Service Access
Front access
Front access
Front access
Front access
Operating Temp/Humidity
-20℃-50℃, 10-90%RH
-20℃-50℃, 10-90%RH
-20℃-50℃, 10-90%RH
-20℃-50℃, 10-90%RH
Storage Temp/Humidity
-40℃-60℃, 10-90%RH
-40℃-60℃, 10-90%RH
-40℃-60℃, 10-90%RH
-40℃-60℃, 10-90%RH
Input Signal
VGA, DVI, HDMI, SDI
VGA, DVI, HDMI, SDI
VGA, DVI, HDMI, SDI
VGA, DVI, HDMI, SDI
Certification
CCC, CE, UL, FCC
