Pixel pitch 2/2.5/3/4/5/6mm
Application: Rretail stores, theaters, corporate lobbies, banks, command and control centers, etc.
Leddisplayllc Indoor LED display screen

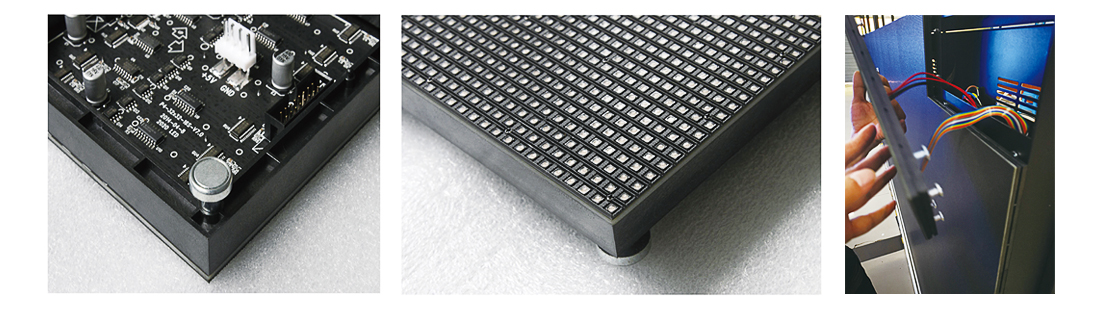

Easy Maintenance
The modules are assembled by magnets, it is easy to assemble the modules and replace the accessories.
Leddisplayllc indoor fixed installation LED screen can be attached on the wall without space behind it, the maintenance can be completely done from front.
Customized design
Can be customized into any shape and size

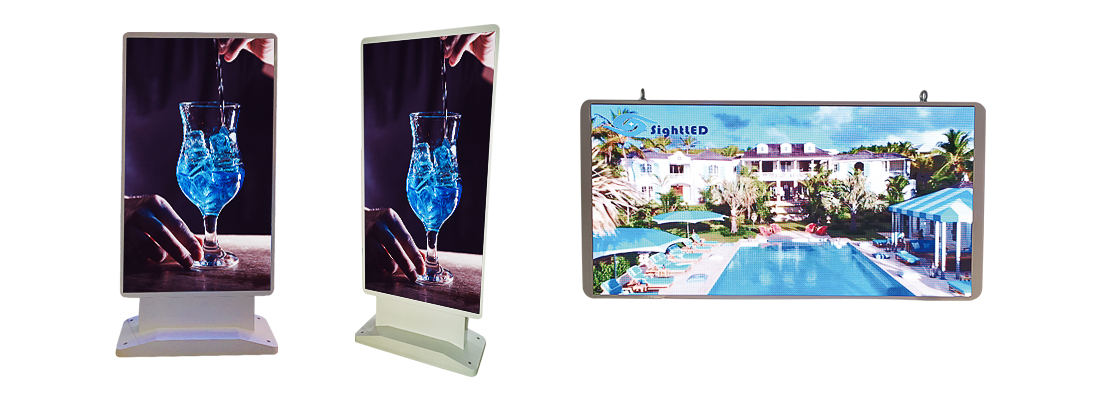

We can make LED posters with the same modules, which are popular for different appolications too

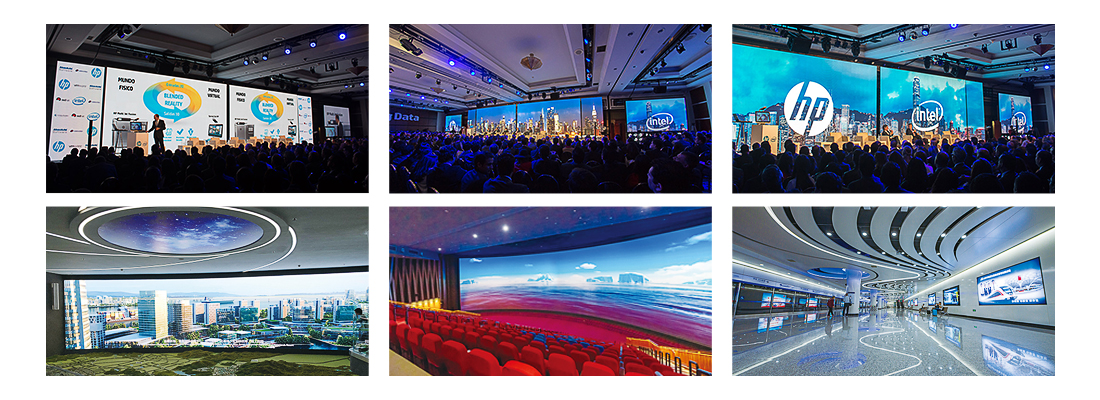

Projects Reference
Indoor LED display screen Specification | ||||
Model | LD2.5 | LD3 | LD4 | LD5 |
Pixel Pitch | P2.5mm | P3mm | P4mm | P5mm |
LED Types | Indoor SMD2121 | Indoor SMD2121 | Indoor SMD2121 | Indoor SMD2121 |
Pixel Density: | 160000/㎡ | 111111/㎡ | 62500/㎡ | 40000/㎡ |
Module Size : (Wx H) | 320*160mm | 192*192mm | 256*128mm | 320*160mm |
Module Resolution: (pixels) | 128*64 | 64*64 | 64*32 | 64*32 |
Module Scanning method : | 1/32 | 1/32 | 1/16 | 1/16 |
Cabinet size & weight | Customized size based on module size and client's need, Weight 28kg/㎡ | |||
Cabinet materials | Steel | |||
Maintenance Way | Magnetically Front service without screws / Back service | |||
Brightness: | 700-1000CD/㎡ (ajustable) | |||
Average Power Consumption: | 150w/㎡ | 150w/㎡ | 140w/㎡ | 120w/㎡ |
Maximum Power Consumption: | 600w/㎡ | 600w/㎡ | 550w/㎡ | 400w/㎡ |
Viewing Angle: | H140°/V140° | |||
Refresh Rate: | Standard 1920hz, Hight refresh rate >3840hz | |||
Grey Scale: | 14-16bit | |||
Input power | 100-120V /200-240V | |||
Operating Environment Temperature: | -20~50 ℃ |
