Product type: Easy Series
Pixel pitch: Outdoor P3.91/ P4.8/ P4/ P6.6/ P8/ P10/ P16
Maintenance type: All the materials can be front or back service
Cabinet size: 960mmX960mm or customized

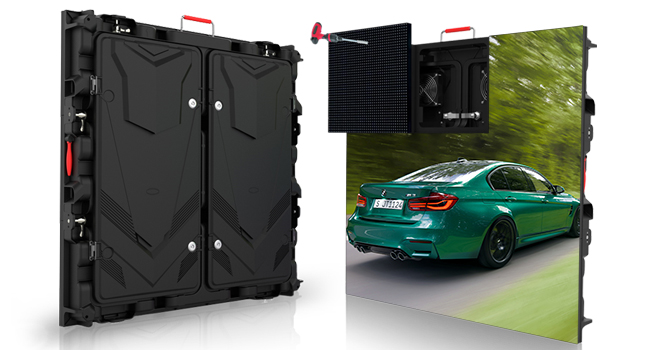

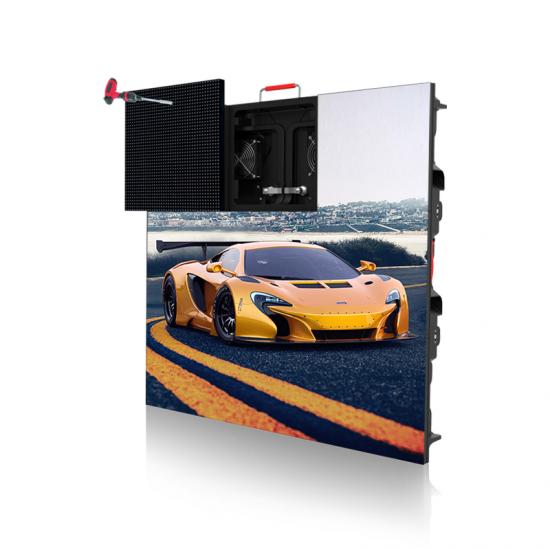

Outdoor Front Access Front Maintenance LED display

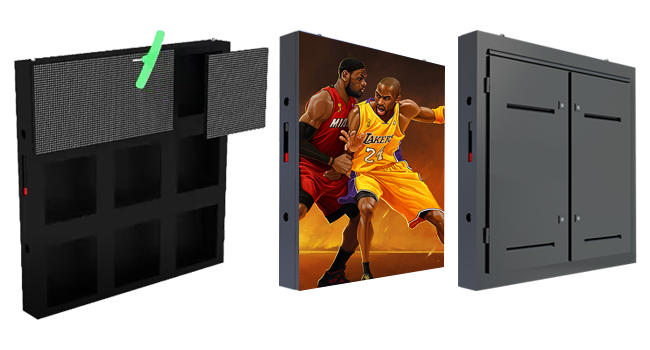

Optional cabinet design
(1)Die-cast aluminum cabinet with front access
|
![]() |
![]() |
(2)Steel/Aluminum cabinets with front access
|
Easy maintenance
Front maintenance LED display can be directly mounted on the wall, It doesn't require space on the back. Can save a big cost of installation frame.

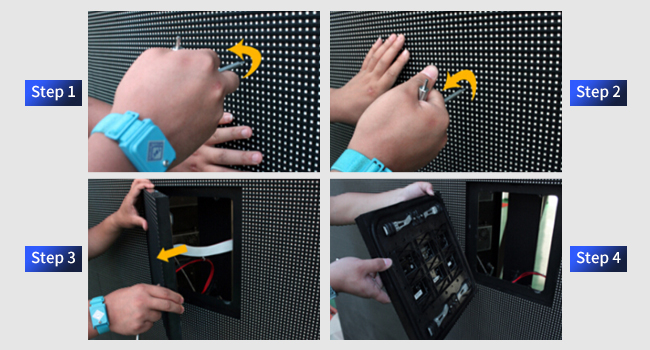

The modules are attached on the cabinets without screws. It takes only 4 steps to disassemble modules.
|
|

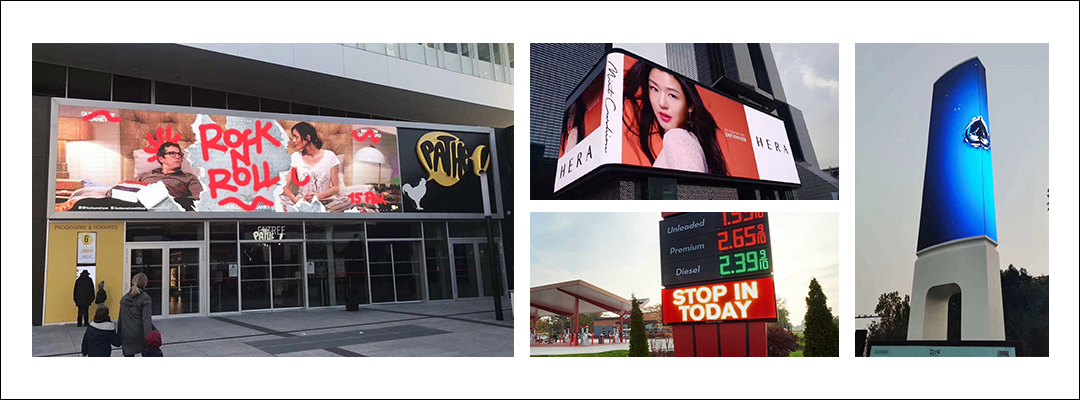

Projects
Parameters
Model |
Easy3.9 |
Easy4.8 |
Easy4.0 |
Easy6.6 |
Easy8.0 |
Easy10.0 |
Easy10.0- DIP |
Easy16.0- DIP |
Pixel pitch |
P3.91mm |
P4.81mm |
P4mm |
P6.67mm |
P8mm |
P10mm |
P10mm |
P16mm |
LED types |
Outdoor SMD1921 |
Outdoor SMD1921 |
Outdoor SMD1921 |
Outdoor SMD1921 |
Outdoor SMD1921 |
Outdoor SMD1921 |
Outdoor DIP Lamps |
Outdoor DIP Lamps |
Pixel Density |
65536/㎡ |
43264/㎡ |
62500/㎡ |
22500/㎡ |
22500/㎡ |
10000/㎡ |
10000/㎡ |
3906/㎡ |
Module size |
250*250mm |
250*250mm |
320*320mm |
320*320mm |
320*320mm |
320*320mm |
320*320mm |
320*320mm |
Standard cabinet size (L*H) |
500 * 500mm |
500 * 500mm |
960 * 960mm |
960 * 960mm |
960 * 960mm |
960 * 960mm |
960 * 960mm |
960 * 960mm |
Maintenance way |
Front and Back access |
