Pixel Pitch：P1.25/1.53/1.66/1.86/2/2.5mm
• High-Quality Black LEDs
• Unparalleled Display Quality
• 16:9 Perfect Sizing
• Magnetic Module
• High Reliability
• Silent Running
• Compact & Lightweight
• Superior Heat Dissipation Performance
• Seamless Splicing

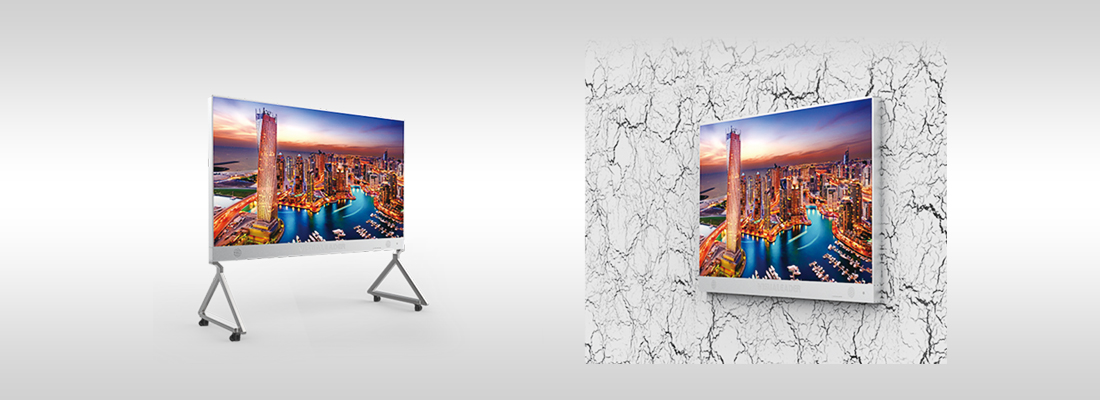

Leddisplayllc Indoor LED display application
16:9 ratio screen
It can make big screen with 16:9 ratio freely, which can match the majority of standard video perfectly
It can make 2K, 4K and 8K big screens ideally and reflect the video content by matching dot-to-dot content displaying

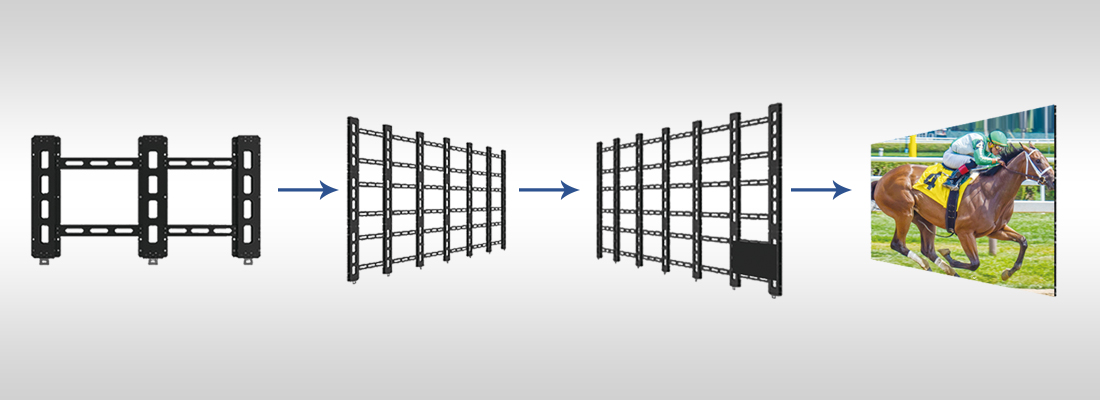

Easy and fast installation
Using standard brackets which is light weight but durable structure for installation
It's much more convenience for installation and transportation.
Our HD LED screens have great performance and adapt to a variety of installation environments.

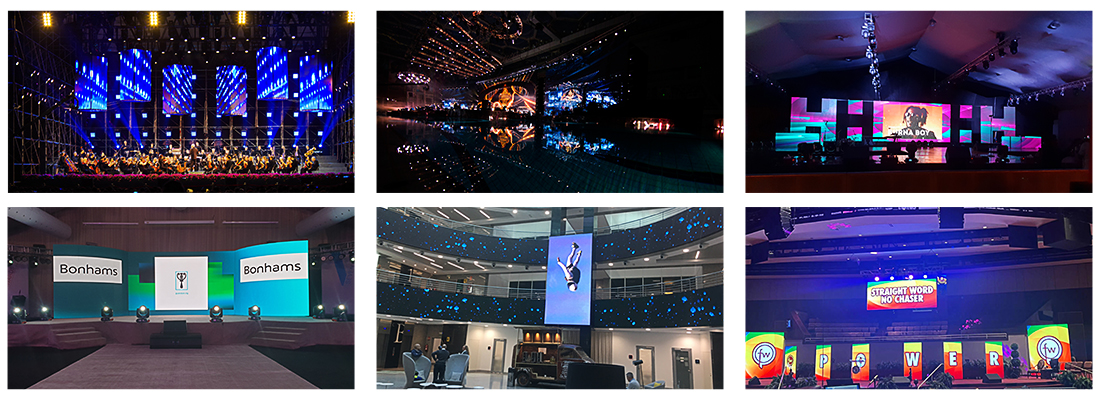

Our projects reference
| HD indoor LED Display Specification | ||||||
| Model | HD1.25 | HD1.53 | HD1.66 | HD1.86 | HD2 | HD2.5 |
| Pixel Pitch | P1.25mm | P1.53mm | P1.66mm | P1.86mm | P2mm | P2.5mm |
| LED Types | Indoor SMD1010 | Indoor SMD1212 | Indoor SMD1212 | Indoor SMD1515 | Indoor SMD1515 | Indoor SMD2121 without mask, SMD1515 with mask |
| Pixel Density: | 640000/㎡ | 422500/㎡ | 360000/㎡ | 288888/㎡ | 250000/㎡ | 160000/㎡ |
| Module Size : (Wx H) | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm 160*160mm |
| Module Resolution: (pixels) | 256*128 | 209*104 | 192*96 | 172*86 | 160*80 | 128*64 |
| Module Scanning method : | 1/64 | 1/52 | 1/48 | 1/43 | 1/40 | 1/32 |
| Cabinet size & weight | 640mm*480mm*74mm (7KG) | |||||
| Cabinet materials | Die-cast aluminum | |||||
| Maintenance Way | Magnetically Front service without screws | |||||
| Brightness: | 600-900CD//㎡ (ajustable) | |||||
| Average Power Consumption: | 150w/㎡ | |||||
| Maximum Power Consumption: | <600w/㎡ | |||||
| Viewing Angle: | H140°/V140° | |||||
| Refresh Rate: | Hight refresh rate >3840hz | |||||
| Grey Scale: | 14-16bit | |||||
| Input power | 100-120V /200-240V | |||||
| Operating Environment Temperature: | -20~50 ℃ | |||||
