Pixel pitch 2.5/3/3.33/4/5/6.67/8/10/16mm
Buildings, Restaurant, Hotel, Bank, Hospital, Station, Airport, Gym, Stadium, Store, Shop, Plaza, Parking Lot, Park, Pole structure, Column structure, Church etc.
Outdoor wall fix installation LED display
Easy Seamless Installation, service and monitoring from the front or rear
We provides different Designs & Models with wide range of screen sizes, holders, and function to meet individual needs.

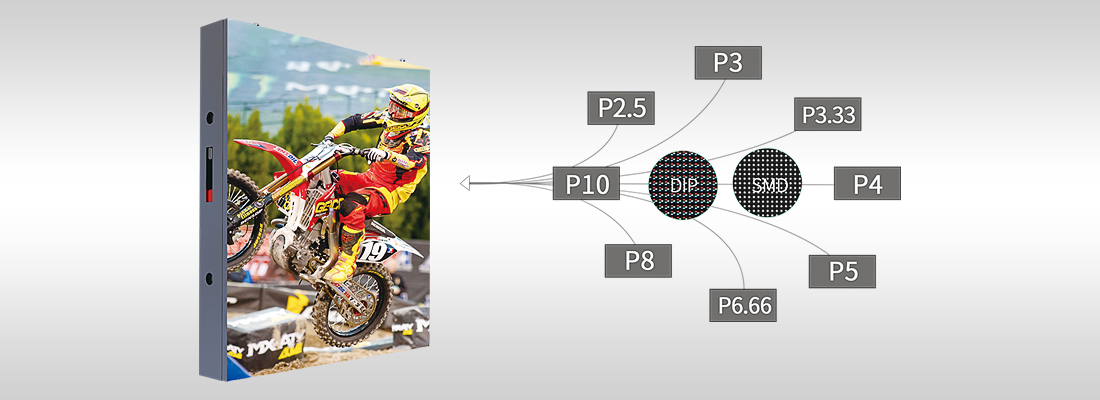

From P2.5, P3, P3.33, P4, P5, P6.66, P8 to P10...
IP65 protection:
Leddisplayllc outdoor LED display are with high protection level and special design andraw material, our outdoor LED screens have great
performance and adapt to a variety of installation environments.

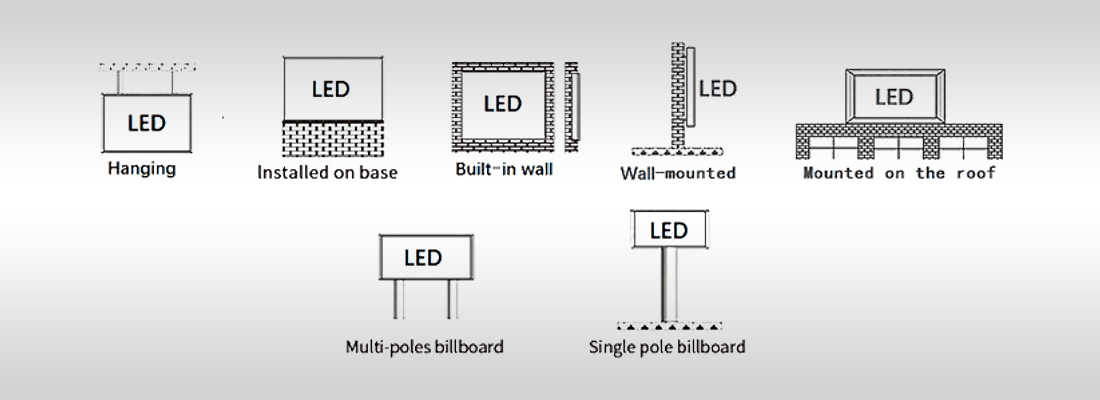

Compatible for all kinds of installation
Single pole or double poles installation, hanging, embeded, wall mounting, roof installation, flag type, mobile use, etc.
Accurate, fast, easy, light weight, flexible positioning installation, it can effectively deal with different installation applications.

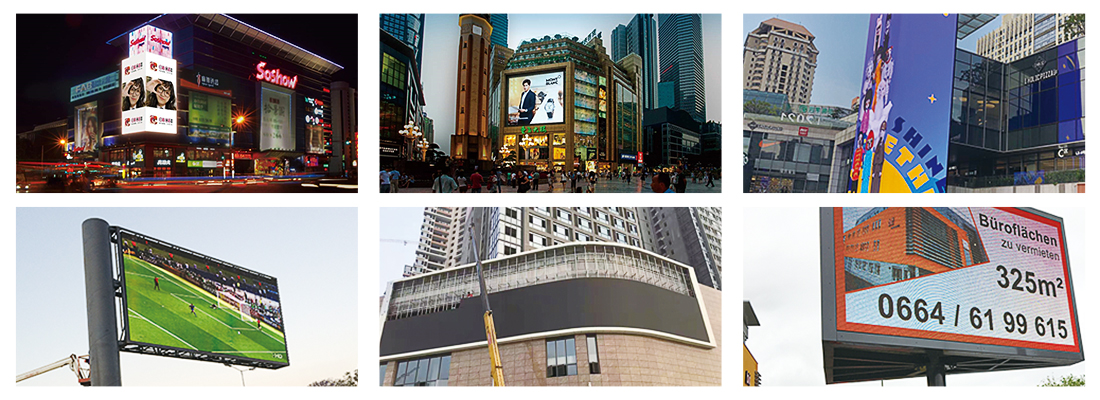

Outdoor LED diplays we built recently
| Specification | ||||||||
| Pixel Pitch | P2.5mm | P3mm | P3.33mm | P4mm | P5mm | P6.66mm | P8mm | P10mm |
| LED Types | Outdoor SMD1415 | Outdoor SMD1921 | Outdoor SMD1921 | Outdoor SMD1921 | Outdoor SMD1921 | Outdoor SMD2727 | Outdoor SMD3535 | Outdoor SMD3535 |
| Pixel Density: | 160000/㎡ | 111111/㎡ | 90000/㎡ | 62500/㎡ | 40000/㎡ | 22500/㎡ | 15625/㎡ | 10000/㎡ |
| Module Size : (W x H) | 320*160mm | 192*192mm | 320*160mm | 320*160mm (256*128mm) | 320*160mm | 320*160mm | 320*160mm (256*128mm) | 320*160mm |
| Module Resolution: (Pixels) | 128 *64 | 128 *64 | 96*48 | 80*40 (64*32) | 64*32 | 48*24 | 40*20 (32*16) | 32*16 |
| Module Scanning method : | 1/16 | 1/16 | 1/12 | 1/10 (1/8 ) | 1/8 | 1/6 | 1/5 (1/4 ) | 1/4 |
| Luminance of White Balance: | > 5500cd/㎡ | > 5500cd/㎡ | > 5500cd/㎡ | >6000cd/㎡ | > 6000cd/㎡ | > 6500cd/㎡ | > 6000cd/㎡ | > 6500cd/㎡ |
| Average Power Consumption: | 270w/㎡ | 270w/㎡ | 270w/㎡ | 240w/㎡ | 240w/㎡ | 240w/㎡ | 240w/㎡ | 240w/㎡ |
| Maximum Power Consumption: | 900w/㎡ | 900w/㎡ | 900w/㎡ | 800w/㎡ | 800w/㎡ | 800w/㎡ | 800w/㎡ | 800w/㎡ |
| Best Viewing Distance: | ≥2.5m | ≥3m | ≥4m | ≥4m | ≥5m | ≥7m | ≥8m | ≥10m |
| Cabinet Size : (W x H) | Outdoor standard cabinet size 960*960mm (Adjustable based on clients final screen size) | |||||||
| Cabinet Material: | Outdoor Aluminum/ Steel / Die-cast aluminum | |||||||
| IP Rate: | IP65 Front /IP54 Rear | |||||||
| Cabinet Weight: | Aluminum / Die-cast aluminum 30kg/sqm , Steel 40kg/sqm | |||||||
| Maintenance Way | Back service | |||||||
| Viewing Angle: | H140°/V140° | |||||||
| Refresh Rate: | Basic 1920hz High 3840-5000hz | |||||||
| Grey Scale: | 16bit | |||||||
| Input power | 100-120V /200-240V | |||||||
| Operating Environment Temp.: | -20'~50 ℃ | |||||||
If you have questions or suggestions, please leave us a message,we will reply you as soon as we can!
Professional LED cabinet design, IP67 in front & back, strong water-proof feature. 5 seconds for installation & uninstallation of front & back accesses.
Lamp-Post LED Display Pixel pitch: Outdoor P3.33/ P4/ P5/ P6.66 Dimension: customized Brightness: >5000cd/m2 Control method: 4G/WIFI control by mobile phone/computer/Ipad/Cloud
Product type: Easy Series Pixel pitch: Outdoor P3.91/ P4.8/ P4/ P6.6/ P8/ P10/ P16 Maintenance type: All the materials can be front or back service Cabinet size: 960mmX960mm or customized
Pixel pitch 2/2.5/3/4/5/6mm Energy-saving and noise-free design Easy maintenance and seamless design Stable quality and reliable functions Big view angles High refresh rate Application: Rretail stores, theaters, corporate lobbies, banks, command and control centers, etc.
LED Cabinet thickness only 80mm, panel weight 12.7KG, super light and slim, good for installation and transportation. Can be installed on the wall, saving space, easy maintenance.
LED Cabinet thickness only 80mm, panel weight 12.7KG, super light and slim, good for installation and transportation. Can be installed on the wall, saving space, easy maintenance.
Leddisplayllc HD series adopts Advanced tech. to make perfect 16:9 ratio High Definition LED display which achieve the real seamless splicing with P0.9/P1.2 /P1.5 /P1.8 pixel pitch.
Pixel Pitch：P1.25/P1.53/1.66/1.86/2/2.5mm -Strong stability:Use high-quality components and sophisticated processing technology to ensure high quality. -High gray:Perfect gray scale performance when brightness down to 20%. -High contrast:high-quality black LEDs make the image clear and sharp. -Super wide viewing anglewith exquisite image:: the view angle is up to160 °/160 ° -High refresh rate:No stripes for HD camera shooting
Pixel Pitch：P1.25/1.53/1.66/1.86/2/2.5mm • High-Quality Black LEDs • Unparalleled Display Quality • 16:9 Perfect Sizing • Magnetic Module • High Reliability • Silent Running • Compact & Lightweight • Superior Heat Dissipation Performance • Seamless Splicing
Leddisplayllc P2.5 Indoor HD Advertising LED Totem Display, your first chioce for small shopping mall, airport hall, hotel lobby, store, restaurant, cafe, etc.
> Cabinet size: 960 x 960 mm (standard), or customized 1280mmX960mm and other sizes. > Pixel pitch: 6mm, 8mm, 10mm > LED Lamp: SMD/DIP > Cabinet material: Magnesium alloy > Low brightness with high gray scale > Fast maintenance > 160° view angle > High refresh rate > High contrast ratio > High gray scale > Front IP65 & Back IP64 rating
Pixel pitch 2/2.5/3/4/5/6mm Energy-saving and noise-free design Easy maintenance and seamless design Stable quality and reliable functions Big view angles High refresh rate Application: Rretail stores, theaters, corporate lobbies, banks, command and control centers, etc.
LED Cabinet thickness only 80mm, panel weight 12.7KG, super light and slim, good for installation and transportation. Can be installed on the wall, saving space, easy maintenance.
Pixel Pitch：P1.25/1.53/1.66/1.86/2/2.5mm • High-Quality Black LEDs • Unparalleled Display Quality • 16:9 Perfect Sizing • Magnetic Module • High Reliability • Silent Running • Compact & Lightweight • Superior Heat Dissipation Performance • Seamless Splicing
