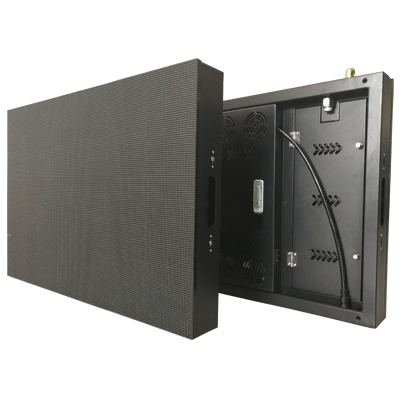

LED Cabinet thickness only 80mm, panel weight 12.7KG, super light and slim, good for installation and transportation. Can be installed on the wall, saving space, easy maintenance.
Fixed Indoor SMD P3 LED Advertising Display
Light and Slim
LED Cabinet thickness only 80mm, panel weight 12.7KG,
super light and slim, good for installation and transportation.
Wide Viewing Angle
Can Be Used for More Indoor Applications
Both vertical and horizontal viewing angles can be reached 140 degrees,
making it the best solution for long-distance and long-time displaying applications.
Can be installed on the wall, saving space.
Fast and easy to operate Hanging installation, stacking installation,
front installation and other installations are available.
Easy Maintenance
Total front service Modules, power supplies, and receiving cards
can be maintained from the front.
Model |
P3 |
Pixel Pitch |
3 mm |
LED Type |
SMD2121 |
Configuration |
1R1G1B |
Module Size |
192*96mm |
Pixel Density |
111111 pixel/㎡ |
Refresh Rate |
≥ 1920Hz |
Gray Scale |
16 Bit |
Brightness |
≥ 1200 cd/㎡ |
Scan Way |
1/16 |
Frame Rate |
50HZ~60HZ |
Viewing Angle |
H:140°, V:140° |
Cabinet Resolution |
256*192 Dots |
Material |
Aluminum (Iron is Optional) |
Cabinet Size |
768*576mm |
Cabinet Weight |
12.7kg |
IP Rating |
IP31 |
Max.Power Consumption |
590W/Panel |
Avg.Power Consumption |
195W/Panel |
Working-Temperature |
-20℃~60℃ |
Working Humidity |
10%~90% RH |
Blind spot rate |
≤0.01% |
MTBF |
35000 Hour |
Lifespan |
100000 Hour |
